Project 10

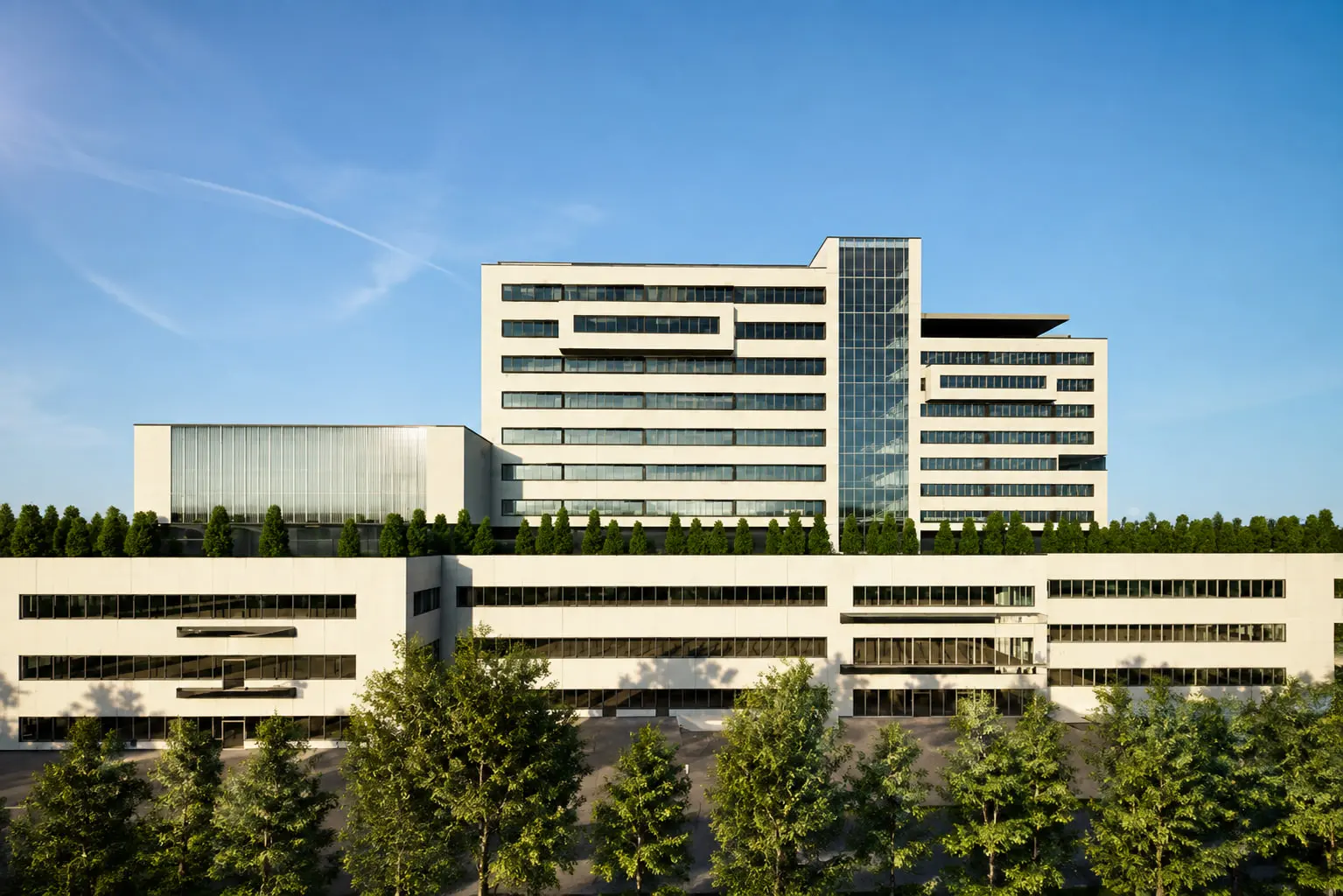

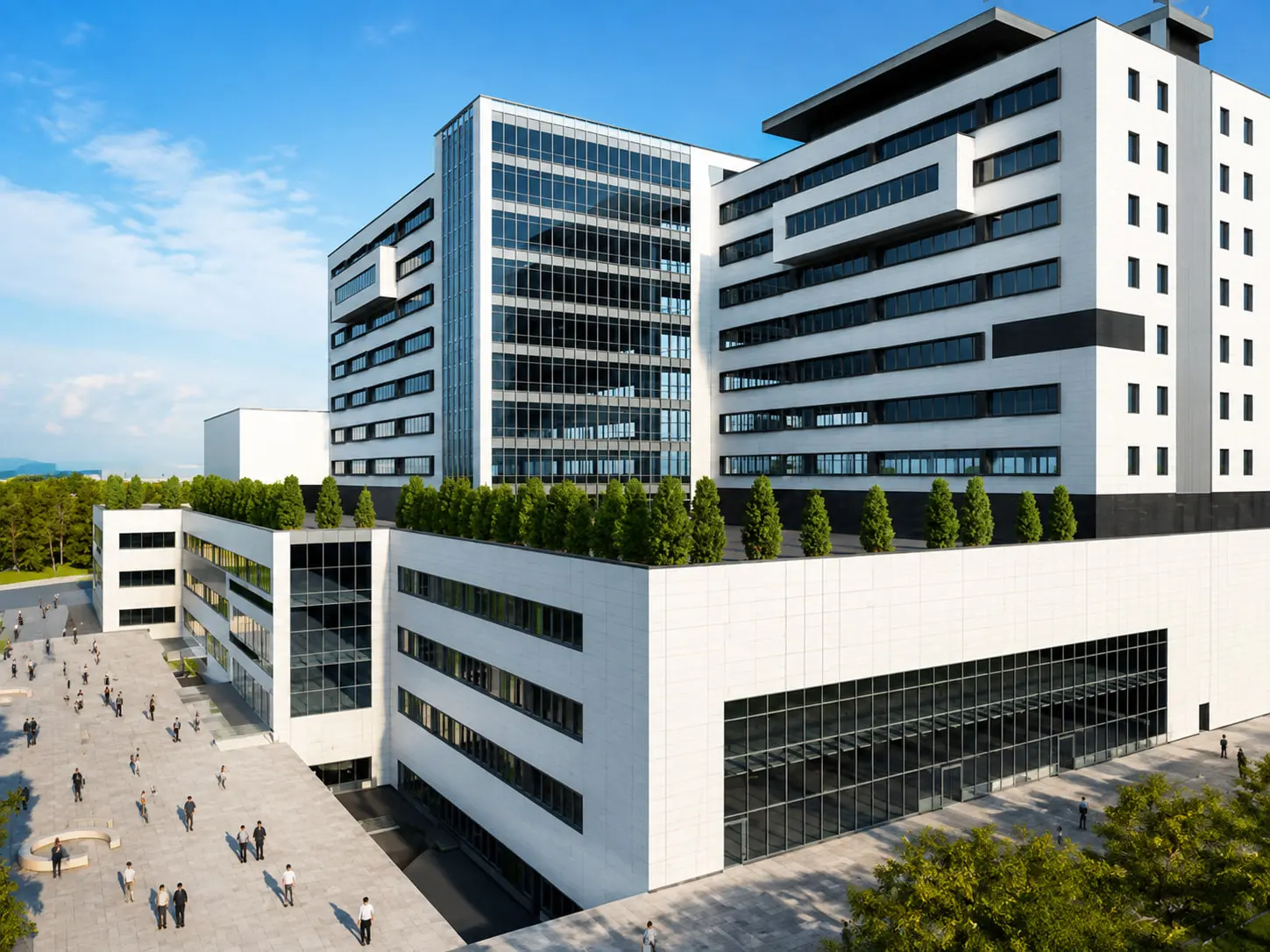

Noor Hospital
Twenty thousand square metres across six envelope systems — ceramic, composite, curtain wall, cable-supported glazing, cement board and dry façade.
- Location
- Qom, Iran
- Area
- 20,000 m²
- Systems
- Ceramic, composite, curtain wall, cable-supported glazing, cement board and dry façade
Engineering
Cable-supported curtain wall
High-tension cables replace mullions. The glass is point-fixed, the structure very nearly disappears, and the wall comes as close to open air as a sealed envelope reasonably gets.
Because the system carries its load in tension it is light, which reduces demand on the primary structure and gives the architect room to work — an atrium wall, a lobby, a skylight, all in the same vocabulary.
-
Transparency
Maximum daylight and uninterrupted views with minimal structural interference.
-
Flexibility
Adapts to façades, atria and skylights across a wide range of geometries.
-
Light structure
Tension members replace heavy framing, freeing capacity in the frame behind.
-
Stability
High-tension cables resist wind and seismic load within controlled deflection.
-
Specification
Glass build-up, cable layout and finishes tailored to the project.
-
Efficiency
Reduced material use and high-performance glazing lower the envelope's footprint.
