System 06

Cable-supported Curtain Wall

Point-fixed tensioned glazing

Family
Cable Systems
Typical use
Tall transparent walls
Relative weight
Very light
Transparency
Very high
Moghaddas Ardebili Office — cable-net wall to the street elevation, Tehran
Moghaddas Ardebili Office — cable-net wall to the street elevation, Tehran

Spider glazing and point-fixed glass façades on cables

High-tension cables replace mullions. Glass is point-fixed to the cable net with spiders, clamps or countersunk bolts, and the structure very nearly disappears. What remains is glass and a grid of steel.

Because the system carries load in tension it is light, which reduces demand on the frame behind it. The trade is deflection: a cable wall moves further under wind than a mullion wall, so the fixings, the glass and the anchorage must be calculated as one system.

Where it works

  • Lobby and entrance walls
  • Atrium enclosures
  • Airport and terminal glazing
  • Retail frontages
  • Cultural and civic buildings
  • Office tower ground floors

What is a cable-supported curtain wall?

A glazed wall in which the glass is supported by pre-tensioned steel cables rather than by aluminium or steel mullions. Each pane is held at its corners by a fitting that connects to the cable. There is no frame around the glass, so from inside the wall reads as glass and a thin grid of steel.

Single-span height
8 – 30 m
Stainless spiral strand
12 – 40 mm
Laminated glass build-up
21.5 – 52 mm
Deflection under design wind
L/50 – L/100

It is known by several names, which describe the same system from different angles:

  • Cable wall / cable-supported curtain wall — named for the structure.
  • Spider glazing — named for the fitting, the four-armed bracket that connects glass to cable.
  • Point-fixed glass façade — named for how the glass is held: at discrete points rather than continuously along its edges.
  • Frameless glass façade — named for what it does not have.
Moghaddas Ardebili Office, Tehran — the point-fixed glass wall to the street elevation, seen from below between two trees
CORTEX project Moghaddas Ardebili Office, Tehran — the street elevation, a glazed cable-net wall with the frame set back behind the glass line.

Three things it is often confused with, and the differences matter:

How a cable-supported curtain wall differs from the systems it is confused with
Often confused with How it differs from this system
Point-fixed glass on a rigid structureGlass point-fixed to glass fins, steel brackets or a rigid frame. Same fitting, completely different structural behaviour and far less movement. On this system the glass is fixed to tensioned cables, and the support moves.
Cable net structures (08)Cables tensioned in two opposing directions forming a surface, in any orientation, carrying glass, ETFE, membrane or metal — the net itself is the structure. This system is a vertical wall, 8 – 30 m single span, with building-envelope performance to meet: air, water, thermal.
Cable structures (05)The family parent — cables as a roofing and canopy structure, carrying a covering over open space.

The distinction that matters commercially: a spider fitting on a rigid frame is a detail. A spider fitting on a cable is a system. Everything on this page follows from that.

The trade: transparency is bought with movement

Movement under wind is an order of magnitude greater than a framed wall.

That is the sentence to understand before anything else, and the specification puts a number on it: deflection limit L/50 – L/100 under design wind.

Work that through. On a 10 m wall, L/50 permits 200 mm of movement at mid-height. On a 20 m wall it is 400 mm. That is not a defect or a tolerance — it is how the system works. A cable resists load by changing shape until the geometry balances the force. Restrain it and you no longer have a cable wall.

Diagram What L/50 – L/100 means on a real wall
  • Section through the wall The cable is pre-tensioned between the structure above and below. Under wind it bows until its shape balances the load, and the movement δ is greatest at mid-height.

    • 10 m wall at L/100 100 mm
    • 10 m wall at L/50 200 mm
    • 20 m wall at L/100 200 mm
    • 20 m wall at L/50 400 mm

    Movement at mid-height The same wall at each end of the deflection limit. Bars are to one scale, so the step from 10 m to 20 m reads as it will on site.

Everything else on this page is a consequence:

  • The fixings must rotate, because the glass stays flat while the cable behind it curves.
  • The glass is sized by the fixing, not only by the span, because movement concentrates stress at the fixing points.
  • The perimeter seals must move by the full deflection without losing their air and water seal.
  • The anchorage must be stiff, because any movement in the supporting structure adds directly to the wall's own.
  • Everything the wall touches — soffits, floors, adjacent construction — needs a joint that accommodates it.

Tell the client about the movement before they see it. On a tall lobby wall, 200 mm is visible in a storm, and a building owner who has not been warned reports it as a defect. Architects who have built one know this; clients building their first do not.

The cable arrangement

Stainless spiral strand, 12 – 40 mm diameter, over a maximum height of 8 – 30 m single span.

The usual arrangement is a set of vertical cables spanning head to base, pre-tensioned between the primary structure above and below, with glass fixed across them. Single span means no intermediate support — the cable runs the full height, which is what keeps the elevation clean and also what produces the deflection.

Pre-tension is derived from form finding, as on every system in this family, and it does two jobs here:

  • It keeps every cable in tension under wind from either direction. A cable that goes slack under reversal is a wall that moves suddenly rather than smoothly.
  • It sets the wall's stiffness. Higher pre-tension means less deflection — and a larger permanent force into the structure above and below.

That second point is the cost trade and it is the same one as on the parent system, cable structures: pre-tension is cheap to increase on a drawing and expensive to resist in a slab edge.

Stainless is specified here rather than galvanised for a reason beyond durability: the cable is at arm's length from people, permanently visible, and often lit. It has to look right for the life of the building.

Fixings: spider, countersunk bolt, or clamp plate

Three types on this system, and the choice changes the glass, the appearance and the cost.

Spider fitting. The familiar four-armed casting, clamped to the cable and picking up the corners of four adjacent panes. Articulated, so each arm rotates as the wall moves. The most tolerant of movement and the most forgiving of setting-out variation. Visible as an object — which on most projects is the point.

Countersunk bolt. The fixing passes through a conical hole in the glass and sits flush with the outer face. The flattest, cleanest exterior available. It demands the most of the glass: the hole is a stress concentration, the countersink removes material from the outer surface, and tolerances on hole position are tight.

Clamp plate. The glass is gripped between plates at the edge rather than drilled. No hole, therefore no hole stress, and glass that is not toughened becomes possible in some configurations. The plate is visible at the joint, so the elevation reads as a grid of small plates rather than of spiders.

Diagram Three ways to fix the glass to the cable
  • Spider fitting Clamped to the cable, picking up the corners of four panes. Articulated, so each arm rotates as the wall moves. Seen from outside.

  • Countersunk bolt Sits in a conical hole, flush with the outer face — the cleanest exterior, and the most demanding of the glass.

  • Clamp plate The glass is gripped between plates at the joint instead of drilled. No hole, so no hole stress — and the elevation reads as a grid of small plates.

The property that matters in all three is rotation. The glass is flat and stays flat. The cable behind it curves under load. Something has to absorb the angular difference, and it is the fitting. A fixing that cannot rotate transfers bending into the glass at the one point where the glass is weakest — its drilled hole.

Close-up of a stainless point fixing clamped to a cable, Moghaddas Ardebili Office, Tehran
CORTEX project A point fixing clamped to the cable on the Moghaddas Ardebili Office.

Glass: the fixing sizes it, not the span

Point fixings concentrate stress at the corners. Glass thickness and lamination are driven by the fixing, not only by the span.

Build-up: laminated or laminated insulating, 21.5 – 52 mm overall.

This inverts the usual logic. On a framed wall, glass is supported continuously along its edges and thickness follows from the pane size and the wind load. On a point-fixed wall the load funnels into four small areas, so the governing stress is local to the fixing, and the glass gets thicker than its span alone would suggest.

Diagram Why point-fixed glass is thicker than its span suggests
  • Framed wall The pane is supported continuously along its edges. Thickness follows from the pane size and the wind load.

  • Point-fixed wall The load funnels into four small areas. The governing stress is local to the fixings, so the glass is thicker than its span alone would suggest.

Three specification consequences:

Laminated, always. If a pane breaks, the interlayer retains the fragments. On a point-fixed wall there is a second reason: if a drilled pane fails, the interlayer holds it on its fixings rather than releasing it.

Drilled glass must be toughened or heat-strengthened. Annealed glass cannot carry the local stress at a hole. Toughened glass raises the nickel sulphide question — it can contain inclusions that cause spontaneous breakage years later, and heat soaking is the process that forces most of those failures to happen in the factory instead. Whether the glass is heat-soaked is a specification decision to settle, not an assumption.

Hole position tolerance is tighter than glass tolerance. The holes locate the pane. If they are out, the pane is out, and unlike a framed system there is no gasket to absorb it. This is a fabrication quality question more than a design one, and it is where cheap point-fixed glazing goes wrong.

Anchorage stiffness: the wall is only as stiff as what it is tied to

Slab edges and ring beams are designed for cable pre-tension, not just for gravity.

This is the most under-appreciated thing about cable walls, and it is where they fail commercially rather than structurally.

A cable wall pulls vertically and permanently on the structure above and below it. A conventional curtain wall hangs off the slab edge and pushes horizontally under wind; a cable wall tries to pull the head beam down and the base structure up, continuously, for the life of the building.

Two consequences:

  • The supporting structure must be designed for it from the outset. A slab edge sized for a framed curtain wall will not take cable pre-tension, and finding that out after the frame is priced is the same sequencing failure that kills cable roofs.
  • Any movement in the support adds to the wall's own. If the head beam deflects 20 mm, the cable loses tension and the wall's mid-height movement can increase by much more than that 20 mm. The structural engineer's deflection limit for the supporting beam is therefore part of the façade specification, not separate from it.
Diagram The wall is only as stiff as what it is tied to
  • Stiff support The wall pulls the head beam down and the base structure up — vertically, permanently, for the life of the building. Both are designed for it from the outset.

  • Soft support If the head beam deflects 20 mm, the cables lose tension and the wall’s mid-height movement can grow by much more than 20 mm. Dashed: the same wall on a stiff beam.

Deflections exaggerated so they can be seen.

Practical guidance: issue indicative cable reactions to the structural engineer at concept stage. Approximate figures are enough for the head beam and slab edge to allow for them, and they cost little to produce. The Moghaddas Ardebili Office street elevation is a delivered cable-net wall with the frame set back behind the glass line.

Perimeter seals and interfaces

Air permeability Class AE to EN 12152. Watertightness Class RE to EN 12154.

Achieving those classes on a wall that moves 200 mm is the real detailing work, and it is entirely at the perimeter.

  • Head and base take the full movement. The seal has to compress and extend through the whole range without losing contact, repeatedly, for decades. This is a moving joint that also has to be airtight.
  • Jambs and abutments are where the wall meets the rest of the building. The adjacent construction does not move; the wall does. Every junction needs a designed movement allowance.
  • Soffits, floors and internal finishes that touch the wall need the same consideration. A plasterboard soffit scribed tight to a cable wall will crack in the first storm.
  • Mock-up testing is how the classes are demonstrated, on the actual geometry with the actual joints. Programme it before fabrication is released.

Thermal performance, honestly

Ucw 1.4 – 1.9 W/m²K. Minimal framing removes the thermal break. Insulated units and edge detailing carry the whole thermal load.

It is worth being straightforward about this, because the comparison is on this site. The framed curtain wall system achieves Ucw 1.2 – 1.8 double glazed and 0.9 – 1.3 triple. A cable-supported wall reaches 1.4 – 1.9, and triple glazing is generally not practical on it — the weight goes straight into the cables and the fittings.

Thermal transmittance: cable wall against framed curtain wall Ucw, W/m²K
  • Cable-supported curtain wall (this system)
  • Framed curtain wall, double glazed
  • Framed curtain wall, triple glazed

← lower is better

Ranges as published for each system on this site — see the curtain wall system.

So a cable wall is thermally weaker than the framed alternative, at both ends of the range. That is the honest position, and it follows directly from what makes the system attractive: there is almost no frame, so there is almost no thermally broken framing to help. The whole thermal load sits on the glass and its edge seal.

What follows from that:

  • On a large lobby or atrium wall, the cooling and heating consequence is real and belongs in the energy model early.
  • The edge seal of the insulating unit becomes disproportionately important, because it is a much larger fraction of the assembly than in a framed wall.
  • Where thermal performance governs the design, this is the wrong system, and we would say so.

What drives the cost

In order of leverage:

  1. The structure behind it. If the slab edge and head beam were designed for cable reactions, this is a normal façade package. If they were not, the cost of stiffening them can exceed the wall. This is decided before the façade is tendered.
  2. Glass thickness, which the fixing sets. Moving from clamp plates to drilled fixings, or from spiders to countersunk bolts, changes the glass specification, and the glass is usually the largest single material cost.
  3. Height. 8 – 30 m single span. Taller means higher pre-tension, larger cables and fittings, thicker glass, and more movement to detail out at every interface — the cost rises faster than the height.
  4. How many fitting types are unique. The same rationalisation argument that governs panel sets on free-form structures applies here. A wall using one spider type two hundred times costs a fraction of one using eight types across the same area.
  5. The perimeter. Movement joints at head, base, jambs and every abutment are bespoke detailing and mock-up scope. A simple rectangular wall is far cheaper per square metre than one with the same area and a complicated edge.

What to decide, and when

  1. Concept

    The height and whether it is a single span. What is above and below the wall structurally, and whether those elements can be designed for permanent tension. The thermal target — if it is demanding, decide now whether this system can meet it.

  2. Developed design

    Fixing type, which sets the glass. Pre-tension range, which sets the reactions. Indicative reactions issued to the structural engineer before the frame is fixed. The movement budget agreed with every trade that touches the wall.

  3. Technical design

    Cable schedule and fittings, glass specification including the heat-soak position, perimeter movement details, mock-up scope and programme, and the tensioning sequence.

  4. Before tender

    Confirmed support stiffness and a defined fitting family. Tendering a cable wall without knowing what it is tied to produces a price with a large risk margin in it.

Design notes

  1. 01

    Deflection

    Movement under wind is an order of magnitude greater than a framed wall. Fixings must rotate and the perimeter seals must accommodate it.

  2. 02

    Anchorage stiffness

    The wall is only as stiff as what it is tied to. Slab edges and ring beams are designed for cable pre-tension, not just for gravity.

  3. 03

    Glass build-up

    Point fixings concentrate stress at the corners. Glass thickness and lamination are driven by the fixing, not only by the span.

  4. 04

    Thermal performance

    Minimal framing removes the thermal break. Insulated units and edge detailing carry the whole thermal load.

Specification

Cable-supported Curtain Wall

Indicative ranges for the system type. Project values are confirmed against the brief, the applicable code and the tested assembly.

Ask about this system
Specification for Cable-supported Curtain Wall — indicative ranges by parameter.
Parameter Typical range
Cable type and diameter Stainless spiral strand, 12 – 40 mm
Pre-tension Project-specific — derived from form finding
Maximum height 8 – 30 m single span
Glass build-up Laminated or laminated insulating, 21.5 – 52 mm
Fixing type Spider fitting, countersunk bolt, or clamp plate
Deflection limit L/50 – L/100 under design wind
Design wind load Project-specific — to EN 1991-1-4 or ASCE 7
Air permeability Class AE to EN 12152
Watertightness Class RE to EN 12154
Thermal transmittance Ucw 1.4 – 1.9 W/m²K

Indicative ranges for the system type, referenced to the governing standards. Project values are confirmed by CORTEX against the brief, the applicable code and the tested assembly.

When a cable wall is the wrong answer

  • If thermal performance governs, use a framed curtain wall. Ucw 0.9 – 1.3 triple glazed is not available on this system.
  • If the supporting structure cannot be stiffened, the wall will not perform, no matter how it is specified. This is a hard constraint, not a detailing challenge.
  • If the opening is small, mullions are cheaper and perform better. The system earns its cost on height and on the absence of frame across a large area.
  • If the interfaces cannot absorb the movement — a wall tight against a rigid soffit, or meeting sensitive adjacent construction — the deflection will find the weakest joint.
  • If the requirement is simply "frameless" and the wall is modest in height, point fixing to glass fins or a slender rigid frame gives a similar appearance with a fraction of the movement.

Questions

Common questions

  • What is a cable-supported curtain wall?

    A glazed wall in which pre-tensioned steel cables replace mullions, with the glass held at its corners by spider fittings, countersunk bolts or clamp plates. There is no frame around the glass, so the wall reads as glass and a thin grid of steel. It is also called a cable wall, spider glazing, point-fixed glass façade or frameless glass façade — all the same system, named after the structure, the fitting, the support method or the absence of a frame.

  • What is spider glazing?

    Glazing supported at discrete points by four-armed articulated brackets — spiders — rather than framed continuously along the edges. Each arm picks up the corner of one pane and rotates as the supporting structure moves. Spiders can be fixed to cables, as on this system, or to a rigid structure such as glass fins or steel brackets, which looks similar but behaves entirely differently: a spider on a rigid frame is a detail, a spider on a cable is a system.

  • How much does a cable wall move under wind?

    L/50 to L/100 under design wind, which on a 10 m wall is up to 200 mm at mid-height and on a 20 m wall up to 400 mm. That is an order of magnitude more than a framed curtain wall, and it is how the system works — a cable resists load by changing shape until the geometry balances the force. The fixings, the glass, the perimeter seals and everything the wall touches are all designed around that movement.

  • What glass is used in point-fixed glazing?

    Laminated or laminated insulating units, 21.5 to 52 mm overall. Glass is always laminated so fragments are retained if a pane breaks, and drilled glass must be toughened or heat-strengthened because annealed glass cannot carry the local stress at a hole. Thickness is driven by the fixing rather than only by the span, because point fixings funnel load into four small areas and the governing stress is local to them.

  • Why does the fixing determine the glass thickness?

    Because a point fixing concentrates stress where a framed edge distributes it. On a framed wall the glass is supported continuously and thickness follows from pane size and wind load. On a point-fixed wall the load passes through four small areas, so the peak stress occurs at the fixing and the glass is thicker than its span alone would require. Changing from clamp plates to drilled fixings, or from spiders to countersunk bolts, changes the glass specification.

  • What structure does a cable wall need behind it?

    One designed for permanent tension, not just gravity. A cable wall pulls continuously on the structure above and below — trying to pull the head beam down and the base structure up — for the life of the building. A slab edge sized for a framed curtain wall will not take cable pre-tension. Any deflection in the support also adds directly to the wall's own movement, so the structural engineer's deflection limit for the head beam is part of the façade specification.

  • How tall can a cable-supported curtain wall be?

    8 to 30 m as a single span on this system — no intermediate support, which is what keeps the elevation clean and also what produces the deflection. Taller walls need higher pre-tension, larger cables and fittings and thicker glass, and produce more movement to detail out at every interface, so cost rises faster than height.

  • Is a cable wall thermally efficient?

    Less so than a framed curtain wall, and the reason is structural. Ucw is 1.4 to 1.9 W/m²K on this system against 1.2 to 1.8 double glazed and 0.9 to 1.3 triple on the framed curtain wall, and triple glazing is generally impractical here because the weight goes into the cables and fittings. Removing the frame removes the thermally broken framing that helps, so the glass and its edge seal carry the whole thermal load. Where thermal performance governs, a framed system is the right answer.

  • How is a moving glass wall kept airtight and watertight?

    At the perimeter, which is where all the movement ends up. Head and base joints take the full deflection and must stay sealed through the whole range, repeatedly, for decades; jambs and abutments need a designed movement allowance because the adjacent construction does not move. The system achieves Class AE to EN 12152 for air permeability and Class RE to EN 12154 for watertightness, demonstrated by mock-up on the actual geometry and the actual joints.

  • What is the difference between a cable wall and a cable net?

    A cable-supported curtain wall is a vertical glazed wall, typically vertical cables spanning head to base, with building-envelope performance to meet — air, water and thermal. A cable net has cables tensioned in two opposing directions forming a surface, works in any orientation, and carries glass, ETFE, membrane or metal as infill. On a cable wall the cables support the glazing; on a cable net the net is the structure.

Reference

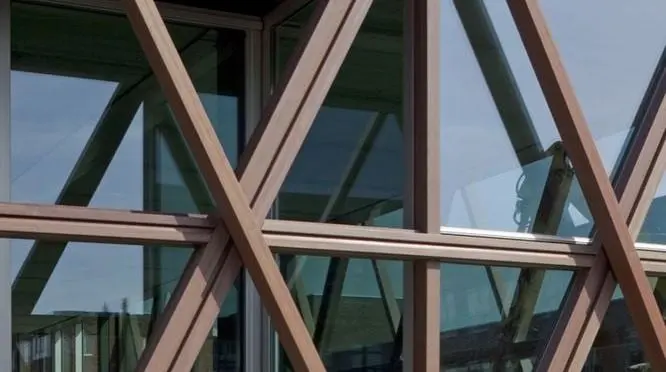

Examples of cable-supported curtain wall as a form, reproduced from the CORTEX Façade Systems catalogue to show the range the system covers. These are reference images of the system type, not CORTEX projects — our delivered work is under Projects.
